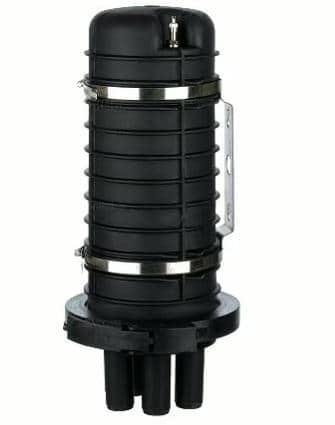

Fiber Optic Splice Closures Features
- Up-down bisection, horizontal/Vertical(Dome) type
• 2 /4 inlet/outlet
•288 cores max capacity
• Slide-in-lock design, over 90 opening angle tray
• Elastic integrated seal ensure tightening fit
• Housing provides fire resistant, waterproof, and quakeproof for splices while handing
• Operating Temperature: -40 ~ +65 °C
Fiber Optic Splice Closures Desscription
Fiber Optic Splice Closures are used for the protective connection of two or multiple optical cables and optic fiber distribution. It is one of the most commonly used equipment for user access points. Used for the outdoor connection between optical distribution cable and optical in-room cable. Available for aerial, duct, and direct buried applications.
Application :
- Suitable for bunchy fibers
- Aerial,wall-mounted, Pole
- FTTH optical fiber distribution
Fiber Optic Splice Closures Data Sheet
| PRODUCT NAME | FIBER OPTIC SPLICE CLOSURE |
|---|---|
| COLOR | black |
| CORES | bunchy 60cores,ribbon 96-144cores |
| PROTECTION CLASS | IP68 |
| SEALS | Mechanical seal |
| MATERIAL | PC |
| CABLE OUT OF THE TUBE CONFIGURATION | Up to four out of the tube fiber optic cable |
| PORTS DIAMETER(MM) | 16~22mm |
| FIBER RADIUS OF CURVATURE(MM) | 30 |
| DIELECTRIC STRENGTH(KV) | 1.5 |
| AMBIENT TEMPERATURE(°C) | -40~+60 |
| ATMOSPHERIC PRESSURE(KPA) | 70~1106 |
| TENSILE STRENGTH(N) | >1000 |
| ANTI-STRESS | >2000N/ 10cm2 Stress,Time 1min |
| INSULATION RESISTANCE | >2X10MΩ/500V(DC) |
| COMPRESSIVE STRENGTH | 15KV(DC)/1min. No breakdown.No flashover |
| HOUSING DIMENSIONS(MM) | 425*163.5*87mm(L*W*H) |
| SPLICE TRAY | Max 4 pcs, 24 cores each |
| SCOPE | Pole, buried, manholes, wall |
| PACKING | 0.18m³/6pcs |
| TOTAL WEIGHT | 3.6kg/1pcs |
